DHCP e NAT em Router Cisco vIOS

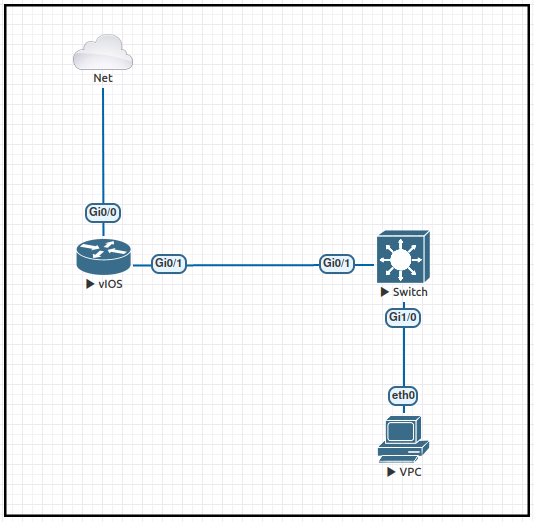

Cenário
Desabilitando os logs do console
Router>enable Router#configure terminal Router(config)#no logging console
Configurando a interface WAN
Router(config)#do show ip interface brief Interface IP-Address OK? Method Status Protocol GigabitEthernet0/0 unassigned YES unset administratively down down GigabitEthernet0/1 unassigned YES unset administratively down down GigabitEthernet0/2 unassigned YES unset administratively down down GigabitEthernet0/3 unassigned YES unset administratively down down
Router(config)#interface gigabitEthernet 0/0 Router(config-if)#ip address dhcp Router(config-if)#description WANInterface Router(config-if)#no shutdown Router(config-if)#ip nat outside
Router(config-if)#do show ip interface brief Interface IP-Address OK? Method Status Protocol GigabitEthernet0/0 192.168.122.60 YES DHCP up up GigabitEthernet0/1 unassigned YES unset administratively down down GigabitEthernet0/2 unassigned YES unset administratively down down GigabitEthernet0/3 unassigned YES unset administratively down down NVI0 192.168.122.60 YES unset up up
Configurando a interface LAN
Router(config-if)#interface GigabitEthernet0/1 Router(config-if)#ip address 172.16.100.1 255.255.255.0 Router(config-if)#description LANInterface Router(config-if)#ip nat inside Router(config-if)#no shutdown Router(config-if)#exit
Router(config)#do show ip interface brief Interface IP-Address OK? Method Status Protocol GigabitEthernet0/0 192.168.122.60 YES DHCP up up GigabitEthernet0/1 172.16.100.1 YES manual up up GigabitEthernet0/2 unassigned YES unset administratively down down GigabitEthernet0/3 unassigned YES unset administratively down down NVI0 192.168.122.60 YES unset up up
Configurando o DHCP Server
Router(config)#ip dhcp excluded-address 172.16.100.1 Router(config)#ip dhcp pool LAN Router(dhcp-config)#default-router 172.16.100.1 Router(dhcp-config)#network 172.16.100.0 /24 Router(dhcp-config)#dns-server 192.168.122.1 Router(dhcp-config)#exit Router(config)#ip access-list standard 1 Router(config-std-nacl)#permit 172.16.100.0 0.0.0.255 Router(config-std-nacl)#exit
Configurando o NAT
Router(config)#ip nat inside source list 1 interface gigabitEthernet 0/0 overload Router(config)#exit
Testando o DHCP e o NAT no cliente
VPCS> ip dhcp DDORA IP 172.16.100.2/24 GW 172.16.100.1
VPCS> show ip NAME : VPCS[1] IP/MASK : 172.16.100.2/24 GATEWAY : 172.16.100.1 DNS : 192.168.122.1 DHCP SERVER : 172.16.100.1 DHCP LEASE : 86372, 86400/43200/75600 MAC : 00:50:79:66:68:03 LPORT : 20000 RHOST:PORT : 127.0.0.1:30000 MTU : 1500
VPCS> ping 172.16.100.1 -c2 84 bytes from 172.16.100.1 icmp_seq=1 ttl=255 time=4.149 ms 84 bytes from 172.16.100.1 icmp_seq=2 ttl=255 time=5.572 ms 84 bytes from 172.16.100.1 icmp_seq=3 ttl=255 time=5.348 ms 84 bytes from 172.16.100.1 icmp_seq=4 ttl=255 time=5.668 ms 84 bytes from 172.16.100.1 icmp_seq=5 ttl=255 time=7.743 ms
VPCS> ping 1.1.1.1 84 bytes from 1.1.1.1 icmp_seq=1 ttl=55 time=29.517 ms 84 bytes from 1.1.1.1 icmp_seq=2 ttl=55 time=28.627 ms 84 bytes from 1.1.1.1 icmp_seq=3 ttl=55 time=29.712 ms 84 bytes from 1.1.1.1 icmp_seq=4 ttl=55 time=28.939 ms 84 bytes from 1.1.1.1 icmp_seq=5 ttl=55 time=26.362 ms
VPCS> ping google.com.br google.com.br resolved to 142.250.219.163 84 bytes from 142.250.219.163 icmp_seq=1 ttl=116 time=38.060 ms 84 bytes from 142.250.219.163 icmp_seq=2 ttl=116 time=40.623 ms 84 bytes from 142.250.219.163 icmp_seq=3 ttl=116 time=40.060 ms 84 bytes from 142.250.219.163 icmp_seq=4 ttl=116 time=42.785 ms 84 bytes from 142.250.219.163 icmp_seq=5 ttl=116 time=38.844 ms
Router#show ip nat translations Pro Inside global Inside local Outside local Outside global icmp 192.168.122.60:35187 172.16.100.2:35187 142.250.219.163:35187 142.250.219.163:35187 icmp 192.168.122.60:35443 172.16.100.2:35443 142.250.219.163:35443 142.250.219.163:35443 icmp 192.168.122.60:35699 172.16.100.2:35699 142.250.219.163:35699 142.250.219.163:35699 icmp 192.168.122.60:35955 172.16.100.2:35955 142.250.219.163:35955 142.250.219.163:35955 icmp 192.168.122.60:36211 172.16.100.2:36211 142.250.219.163:36211 142.250.219.163:36211 udp 192.168.122.60:41488 172.16.100.2:41488 192.168.122.1:53 192.168.122.1:53
