Huawei - VLAN hybrid v2

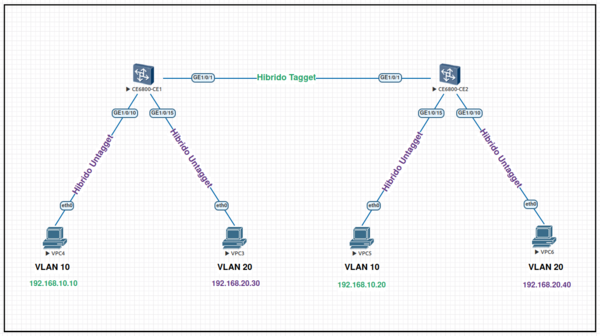

Cenário
SWA
<HUAWEI>system-view [~HUAWEI]sysname SWA
[~HUAWEI]vlan batch 10 20
TRUNK
[*HUAWEI]interface GE 1/0/1 [*HUAWEI-GE1/0/1]port link-type trunk [*HUAWEI-GE1/0/1]port trunk allow-pass vlan 10 20
ACCESS VLAN 10
[~SWA]interface GE 1/0/10 [~SWA-GE1/0/10]port link-type hybrid [*SWA-GE1/0/10]port hybrid pvid vlan 10 [*SWA-GE1/0/10]port hybrid untagged vlan 10
Outros exemplos de tageamento de VLAN
[~SWA]interface GE 1/0/10 [~SWA-GE1/0/10]port link-type access [*SWA-GE1/0/10]port default vlan 10
[~SWA]interface GE 1/0/10 [~SWA-GE1/0/10]port link-type hybrid [*SWA-GE1/0/10]port hybrid pvid vlan 10 [*SWA-GE1/0/10]port hybrid untagged vlan 10 [*SWA-GE1/0/10]port hybrid tagged vlan 50
ACCESS VLAN 20
[~SWA]interface GE 1/0/15 [~SWA-GE1/0/15]port link-type hybrid [*SWA-GE1/0/15]port hybrid pvid vlan 20 [*SWA-GE1/0/15]port hybrid untagged vlan 20 [*SWA-GE1/0/15]quit [*SWA]commit
[~SWA]display vlan The total number of vlans is : 3 -------------------------------------------------------------------------------- U: Up; D: Down; TG: Tagged; UT: Untagged; MP: Vlan-mapping; ST: Vlan-stacking; #: ProtocolTransparent-vlan; *: Management-vlan; MAC-LRN: MAC-address learning; STAT: Statistic; BC: Broadcast; MC: Multicast; UC: Unknown-unicast; FWD: Forward; DSD: Discard; -------------------------------------------------------------------------------- VID Ports -------------------------------------------------------------------------------- 1 UT:GE1/0/0(U) GE1/0/1(U) GE1/0/2(U) GE1/0/3(U) GE1/0/4(U) GE1/0/5(U) GE1/0/6(U) GE1/0/7(U) GE1/0/8(U) GE1/0/9(U) GE1/0/10(U) GE1/0/11(U) GE1/0/12(U) GE1/0/13(U) GE1/0/14(U) GE1/0/15(U) GE1/0/16(U) GE1/0/17(U) GE1/0/18(U) GE1/0/19(U) GE1/0/20(D) GE1/0/21(D) GE1/0/22(D) GE1/0/23(D) GE1/0/24(D) GE1/0/25(D) GE1/0/26(D) GE1/0/27(D) GE1/0/28(D) GE1/0/29(D) GE1/0/30(D) GE1/0/31(D) GE1/0/32(D) GE1/0/33(D) GE1/0/34(D) GE1/0/35(D) GE1/0/36(D) GE1/0/37(D) GE1/0/38(D) GE1/0/39(D) GE1/0/40(D) GE1/0/41(D) GE1/0/42(D) GE1/0/43(D) GE1/0/44(D) GE1/0/45(D) GE1/0/46(D) GE1/0/47(D) 10 UT:GE1/0/10(U) TG:GE1/0/1(U) 20 UT:GE1/0/15(U) TG:GE1/0/1(U) VID Type Status Property MAC-LRN STAT BC MC UC Description -------------------------------------------------------------------------------- 1 common enable default enable disable FWD FWD FWD VLAN 0001 10 common enable default enable disable FWD FWD FWD VLAN 0010 20 common enable default enable disable FWD FWD FWD VLAN 0020
SWA
<HUAWEI>system-view [~HUAWEI]sysname SWA [*HUAWEI]commit
[~SWA]vlan batch 10 20
TRUNK
[~SWA]interface GE 1/0/1 [~SWA-GE1/0/1]port link-type trun [~SWA-GE1/0/1]port link-type trunk [*SWA-GE1/0/1]port trunk allow-pass vlan 10 20 [*SWA-GE1/0/1]quit [*SWA]commit
ACCESS VLAN 10
[~SWA]interface GE 1/0/15 [~SWA-GE1/0/15]port link-type hybrid [*SWA-GE1/0/15]port hybrid pvid vlan 10 [*SWA-GE1/0/15]port hybrid untagged vlan 10 [*SWA-GE1/0/15]quit [*SWA]commit
ACCESS VLAN 20
[~SWA]interface GE 1/0/10 [~SWA-GE1/0/10]port link-type hybrid [*SWA-GE1/0/10]port hybrid pvid vlan 20 [*SWA-GE1/0/10]port hybrid untagged vlan 20 [*SWA-GE1/0/10]quit [*SWA]commit
VPC
VPC10 VLAN 10
VPCS> ip 192.168.10.10/24
VPC20 VLAN 20
VPCS> ip 192.168.10.20/24
VPC30 VLAN 10
VPCS> ip 192.168.20.30/24
VPC40 VLAN 20
VPCS> ip 192.168.20.40/24
Testando o acesso
VPC10 VLAN 10
VPCS> ping 192.168.10.20 84 bytes from 192.168.10.20 icmp_seq=1 ttl=64 time=2.540 ms 84 bytes from 192.168.10.20 icmp_seq=2 ttl=64 time=2.283 ms 84 bytes from 192.168.10.20 icmp_seq=3 ttl=64 time=2.688 ms 84 bytes from 192.168.10.20 icmp_seq=4 ttl=64 time=2.639 ms 84 bytes from 192.168.10.20 icmp_seq=5 ttl=64 time=2.241 ms
VPC20 VLAN 20
VPCS> ping 192.168.10.10 84 bytes from 192.168.10.10 icmp_seq=1 ttl=64 time=2.356 ms 84 bytes from 192.168.10.10 icmp_seq=2 ttl=64 time=2.744 ms 84 bytes from 192.168.10.10 icmp_seq=3 ttl=64 time=2.864 ms 84 bytes from 192.168.10.10 icmp_seq=4 ttl=64 time=2.632 ms 84 bytes from 192.168.10.10 icmp_seq=5 ttl=64 time=2.754 ms
VPC30 VLAN 10
VPCS> ping 192.168.20.40 84 bytes from 192.168.20.40 icmp_seq=1 ttl=64 time=2.667 ms 84 bytes from 192.168.20.40 icmp_seq=2 ttl=64 time=2.631 ms 84 bytes from 192.168.20.40 icmp_seq=3 ttl=64 time=3.021 ms 84 bytes from 192.168.20.40 icmp_seq=4 ttl=64 time=2.170 ms 84 bytes from 192.168.20.40 icmp_seq=5 ttl=64 time=2.053 ms
VPC40 VLAN 20
VPCS> ping 192.168.20.30 84 bytes from 192.168.20.30 icmp_seq=1 ttl=64 time=2.765 ms 84 bytes from 192.168.20.30 icmp_seq=2 ttl=64 time=2.598 ms 84 bytes from 192.168.20.30 icmp_seq=3 ttl=64 time=2.600 ms 84 bytes from 192.168.20.30 icmp_seq=4 ttl=64 time=2.840 ms 84 bytes from 192.168.20.30 icmp_seq=5 ttl=64 time=2.231 ms
VLAN de gerência
SWA
[~SWA]vlan 100 [*SWA-vlan100]quit [*SWA]interface Vlanif 100 [*SWA-Vlanif100]description VLAN-MGMT [*SWA-Vlanif100]ip address 192.168.100.2 255.255.255.0 [*SWA-Vlanif100]quit [*SWA]commit
[~SWA]interface GE 1/0/1 [~SWA-GE1/0/1]port trunk allow-pass vlan 100
[*SWA-GE1/0/1]commit [~SWA-GE1/0/1]display this # interface GE1/0/1 undo shutdown port link-type trunk port trunk allow-pass vlan 10 20 100 # return
[~SWA]return <SWA>ping 192.168.100.3 PING 192.168.100.3: 56 data bytes, press CTRL_C to break Reply from 192.168.100.3: bytes=56 Sequence=1 ttl=255 time=15 ms Reply from 192.168.100.3: bytes=56 Sequence=2 ttl=255 time=2 ms Reply from 192.168.100.3: bytes=56 Sequence=3 ttl=255 time=2 ms Reply from 192.168.100.3: bytes=56 Sequence=4 ttl=255 time=2 ms Reply from 192.168.100.3: bytes=56 Sequence=5 ttl=255 time=3 ms --- 192.168.100.3 ping statistics --- 5 packet(s) transmitted 5 packet(s) received 0.00% packet loss round-trip min/avg/max = 2/4/15 ms <SWA>
SWB
[~SWA]vlan 100 [*SWA-vlan100]quit [*SWA]interface Vlanif 100 [*SWA-Vlanif100]description VLAN-MGMT [*SWA-Vlanif100]ip address 192.168.100.3 24 [*SWA-Vlanif100]quit [*SWA]commit
[~SWA]interface GE 1/0/1 [~SWA-GE1/0/1]port trunk allow-pass vlan 100
[*SWA-GE1/0/1]commit [~SWA-GE1/0/1]display this # interface GE1/0/1 undo shutdown port link-type trunk port trunk allow-pass vlan 10 20 100 # return
[~SWA]return <SWA>ping 192.168.100.2 PING 192.168.100.2: 56 data bytes, press CTRL_C to break Reply from 192.168.100.2: bytes=56 Sequence=1 ttl=255 time=3 ms Reply from 192.168.100.2: bytes=56 Sequence=2 ttl=255 time=3 ms Reply from 192.168.100.2: bytes=56 Sequence=3 ttl=255 time=3 ms Reply from 192.168.100.2: bytes=56 Sequence=4 ttl=255 time=2 ms Reply from 192.168.100.2: bytes=56 Sequence=5 ttl=255 time=2 ms --- 192.168.100.2 ping statistics --- 5 packet(s) transmitted 5 packet(s) received 0.00% packet loss round-trip min/avg/max = 2/2/3 ms <SWA>
