Case 1: Configuring Interface-based VLAN Assignment

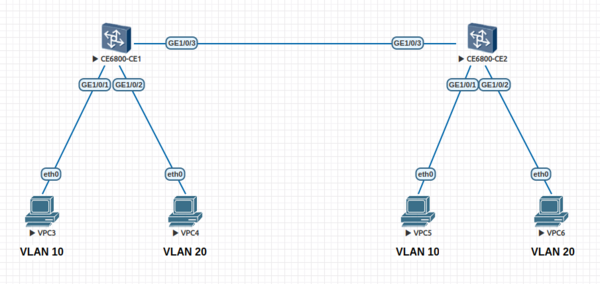

Cenário
CE6800-CE1
[~CE6800-CE1]vlan 10 [*CE6800-CE1-vlan10]quit [*CE6800-CE1]vlan 20 [*CE6800-CE1-vlan20]quit [*CE6800-CE1]commit
[~CE6800-CE1]interface GE 1/0/1 [~CE6800-CE1-GE1/0/1]port link-type access [~CE6800-CE1-GE1/0/1]port default vlan 10 [*CE6800-CE1-GE1/0/1]commit [~CE6800-CE1-GE1/0/1]quit
[~CE6800-CE1]interface GE 1/0/2 [~CE6800-CE1-GE1/0/2]port link-type access [~CE6800-CE1-GE1/0/2]port default vlan 20 [*CE6800-CE1-GE1/0/2]commit [~CE6800-CE1-GE1/0/2]quit
[~CE6800-CE1]interface GE 1/0/3 [~CE6800-CE1-GE1/0/3]port link-type trunk [*CE6800-CE1-GE1/0/3]port trunk pvid vlan 1 [*CE6800-CE1-GE1/0/3]port trunk allow-pass vlan 10 20 [*CE6800-CE1-GE1/0/3]commit [~CE6800-CE1-GE1/0/3]quit
[~CE6800-CE1]display vlan The total number of vlans is : 3 -------------------------------------------------------------------------------- U: Up; D: Down; TG: Tagged; UT: Untagged; MP: Vlan-mapping; ST: Vlan-stacking; #: ProtocolTransparent-vlan; *: Management-vlan; MAC-LRN: MAC-address learning; STAT: Statistic; BC: Broadcast; MC: Multicast; UC: Unknown-unicast; FWD: Forward; DSD: Discard; -------------------------------------------------------------------------------- VID Ports -------------------------------------------------------------------------------- 1 UT:GE1/0/0(U) GE1/0/3(U) GE1/0/4(U) GE1/0/5(U) GE1/0/6(U) GE1/0/7(U) GE1/0/8(U) GE1/0/9(U) GE1/0/10(U) GE1/0/11(U) GE1/0/12(U) GE1/0/13(U) GE1/0/14(U) GE1/0/15(U) GE1/0/16(U) GE1/0/17(U) GE1/0/18(U) GE1/0/19(U) GE1/0/20(D) GE1/0/21(D) GE1/0/22(D) GE1/0/23(D) GE1/0/24(D) GE1/0/25(D) GE1/0/26(D) GE1/0/27(D) GE1/0/28(D) GE1/0/29(D) GE1/0/30(D) GE1/0/31(D) GE1/0/32(D) GE1/0/33(D) GE1/0/34(D) GE1/0/35(D) GE1/0/36(D) GE1/0/37(D) GE1/0/38(D) GE1/0/39(D) GE1/0/40(D) GE1/0/41(D) GE1/0/42(D) GE1/0/43(D) GE1/0/44(D) GE1/0/45(D) GE1/0/46(D) GE1/0/47(D) 10 UT:GE1/0/1(U) TG:GE1/0/3(U) 20 UT:GE1/0/2(U) TG:GE1/0/3(U) VID Type Status Property MAC-LRN STAT BC MC UC Description -------------------------------------------------------------------------------- 1 common enable default enable disable FWD FWD FWD VLAN 0001 10 common enable default enable disable FWD FWD FWD VLAN 0010 20 common enable default enable disable FWD FWD FWD VLAN 0020
[~CE6800-CE1]display current-configuration interface GE 1/0/1 # interface GE1/0/1 undo shutdown port default vlan 10 # return
[~CE6800-CE1]display current-configuration interface GE 1/0/2 # interface GE1/0/2 undo shutdown port default vlan 20 # return
[~CE6800-CE1]display current-configuration interface GE 1/0/3 # interface GE1/0/3 undo shutdown port link-type trunk port trunk allow-pass vlan 10 20 # return
CE6800-CE2
[~CE6800-CE2]vlan batch 10 20
[~CE6800-CE2]interface GE 1/0/1 [~CE6800-CE2-GE1/0/1]port link-type access [~CE6800-CE2-GE1/0/1]port default vlan 10 [*CE6800-CE2-GE1/0/1]commit [~CE6800-CE2-GE1/0/1]quit
[~CE6800-CE2]interface GE 1/0/2 [~CE6800-CE2-GE1/0/2]port link-type access [~CE6800-CE2-GE1/0/2]port default vlan 20 [*CE6800-CE2-GE1/0/2]commit [~CE6800-CE2-GE1/0/2]quit
[~CE6800-CE2]interface GE 1/0/3 [~CE6800-CE2-GE1/0/3]port link-type trunk [*CE6800-CE2-GE1/0/3]port trunk pvid vlan 1 [*CE6800-CE2-GE1/0/3]port trunk allow-pass vlan 10 20 [*CE6800-CE2-GE1/0/3]commit [~CE6800-CE2-GE1/0/3]quit
[~CE6800-CE2]display vlan The total number of vlans is : 3 -------------------------------------------------------------------------------- U: Up; D: Down; TG: Tagged; UT: Untagged; MP: Vlan-mapping; ST: Vlan-stacking; #: ProtocolTransparent-vlan; *: Management-vlan; MAC-LRN: MAC-address learning; STAT: Statistic; BC: Broadcast; MC: Multicast; UC: Unknown-unicast; FWD: Forward; DSD: Discard; -------------------------------------------------------------------------------- VID Ports -------------------------------------------------------------------------------- 1 UT:GE1/0/0(U) GE1/0/3(U) GE1/0/4(U) GE1/0/5(U) GE1/0/6(U) GE1/0/7(U) GE1/0/8(U) GE1/0/9(U) GE1/0/10(U) GE1/0/11(U) GE1/0/12(U) GE1/0/13(U) GE1/0/14(U) GE1/0/15(U) GE1/0/16(U) GE1/0/17(U) GE1/0/18(U) GE1/0/19(U) GE1/0/20(D) GE1/0/21(D) GE1/0/22(D) GE1/0/23(D) GE1/0/24(D) GE1/0/25(D) GE1/0/26(D) GE1/0/27(D) GE1/0/28(D) GE1/0/29(D) GE1/0/30(D) GE1/0/31(D) GE1/0/32(D) GE1/0/33(D) GE1/0/34(D) GE1/0/35(D) GE1/0/36(D) GE1/0/37(D) GE1/0/38(D) GE1/0/39(D) GE1/0/40(D) GE1/0/41(D) GE1/0/42(D) GE1/0/43(D) GE1/0/44(D) GE1/0/45(D) GE1/0/46(D) GE1/0/47(D) 10 UT:GE1/0/1(U) TG:GE1/0/3(U) 20 UT:GE1/0/2(U) TG:GE1/0/3(U) VID Type Status Property MAC-LRN STAT BC MC UC Description -------------------------------------------------------------------------------- 1 common enable default enable disable FWD FWD FWD VLAN 0001 10 common enable default enable disable FWD FWD FWD VLAN 0010 20 common enable default enable disable FWD FWD FWD VLAN 0020
[~CE6800-CE2]display current-configuration interface GE 1/0/1 # interface GE1/0/1 undo shutdown port default vlan 10 # return
[~CE6800-CE2]display current-configuration interface GE 1/0/2 # interface GE1/0/2 undo shutdown port default vlan 20 # return
[~CE6800-CE2]display current-configuration interface GE 1/0/3 # interface GE1/0/3 undo shutdown port link-type trunk port trunk allow-pass vlan 10 20 # return
PVC1 VLAN 10
VPCS> ip 192.168.10.10 255.255.255.0 Checking for duplicate address... VPCS : 192.168.10.10 255.255.255.0
VPCS> ping 192.168.20.20 host (255.255.255.0) not reachable
VPCS> ping 192.168.10.11 84 bytes from 192.168.10.11 icmp_seq=1 ttl=64 time=1.868 ms 84 bytes from 192.168.10.11 icmp_seq=2 ttl=64 time=2.845 ms 84 bytes from 192.168.10.11 icmp_seq=3 ttl=64 time=2.879 ms 84 bytes from 192.168.10.11 icmp_seq=4 ttl=64 time=2.793 ms 84 bytes from 192.168.10.11 icmp_seq=5 ttl=64 time=2.525 ms
PVC2 VLAN 10
VPCS> ip 192.168.10.11 255.255.255.0 Checking for duplicate address... VPCS : 192.168.10.11 255.255.255.0
VPCS> ping 192.168.20.21 host (255.255.255.0) not reachable
VPCS> ping 192.168.10.10 84 bytes from 192.168.10.10 icmp_seq=1 ttl=64 time=1.756 ms 84 bytes from 192.168.10.10 icmp_seq=2 ttl=64 time=2.555 ms 84 bytes from 192.168.10.10 icmp_seq=3 ttl=64 time=2.605 ms 84 bytes from 192.168.10.10 icmp_seq=4 ttl=64 time=2.470 ms 84 bytes from 192.168.10.10 icmp_seq=5 ttl=64 time=2.637 ms
PVC1 VLAN 20
VPCS> ip 192.168.20.20 255.255.255.0 Checking for duplicate address... VPCS : 192.168.20.20 255.255.255.0
VPCS> ping 192.168.10.11 host (255.255.255.0) not reachable
VPCS> ping 192.168.20.21 84 bytes from 192.168.20.21 icmp_seq=1 ttl=64 time=1.818 ms 84 bytes from 192.168.20.21 icmp_seq=2 ttl=64 time=2.928 ms 84 bytes from 192.168.20.21 icmp_seq=3 ttl=64 time=2.503 ms 84 bytes from 192.168.20.21 icmp_seq=4 ttl=64 time=2.642 ms 84 bytes from 192.168.20.21 icmp_seq=5 ttl=64 time=2.677 ms
PVC2 VLAN 20
VPCS> ip 192.168.20.21 255.255.255.0 Checking for duplicate address... VPCS : 192.168.20.21 255.255.255.0
VPCS> ping 192.168.10.10 host (255.255.255.0) not reachable
VPCS> ping 192.168.20.20 84 bytes from 192.168.20.20 icmp_seq=1 ttl=64 time=2.198 ms 84 bytes from 192.168.20.20 icmp_seq=2 ttl=64 time=2.736 ms 84 bytes from 192.168.20.20 icmp_seq=3 ttl=64 time=2.658 ms 84 bytes from 192.168.20.20 icmp_seq=4 ttl=64 time=3.087 ms 84 bytes from 192.168.20.20 icmp_seq=5 ttl=64 time=2.660 ms
